Chain Driven Roller Conveyor, BK-CDLR

Using “DAMON” double sprocket roller.
All the hazard point of the moving parts are fully covered.
Able to carry up to 3,000 kg pallet load.
Modular assembly.
Max length up to 6,000 mm.

Diverter unit, BK-D-60/80

Standard design using compact cylinder
To lift up/down empty pallet.
Cam type, air below or Scissor lifter design used for full load pallet up to 2,000 KG.
This product is using aluminum profile, quality chain and gear motor.
SUS chain upon requested.

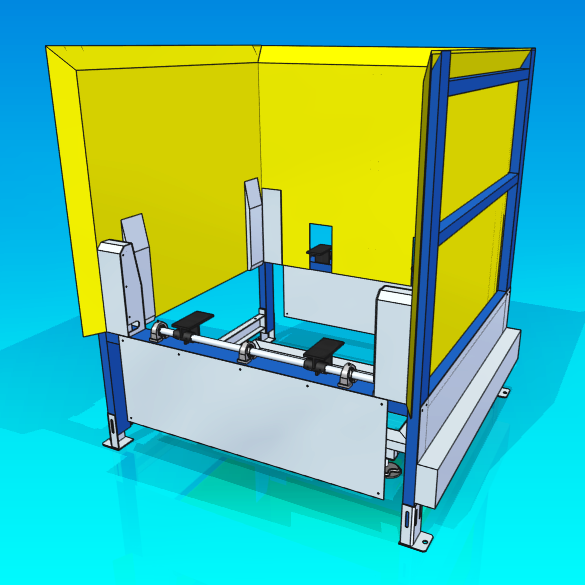

Pallet Dispenser – BK- PD-Model 1000

With high side guide design is available.
The lift up is using cylinder and scissors lifter.
The pallet holding is using the cylinder.
The max stack up to 20 pallets.
The main structures are using C-channel 100 x 50 x 6t mm.
Fully sensor and pallet low sensors are integrated to the system.

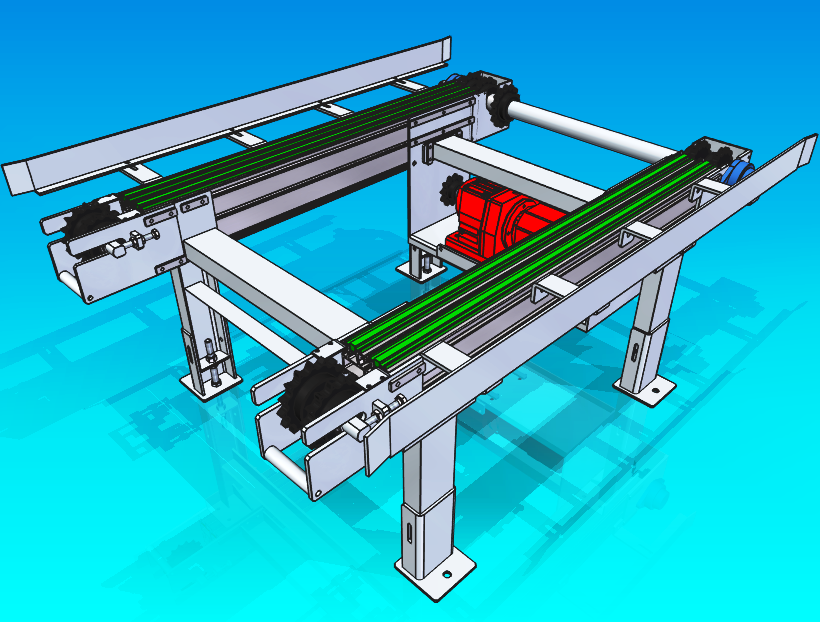

Pallet Flat Chain Conveyor, Model: BK-L-60/80

Effective handling of large, heavy duty
Products or pallets of varying sizes.
Capable capacity up to 2,000 kg.
This product is using aluminum profile, quality chain and gear motor
SUS chain is available upon request.

Chain Driven Roller Turn Table Conveyor, BK-CDTR

Using “DAMON” double sprocket roller.
All the hazard point of the moving parts are fully covered.
Able to carry up to 3,000 kg pallet load.
Modular assembly.
Turning motion can be air activated, motor drive or clutched motor.
